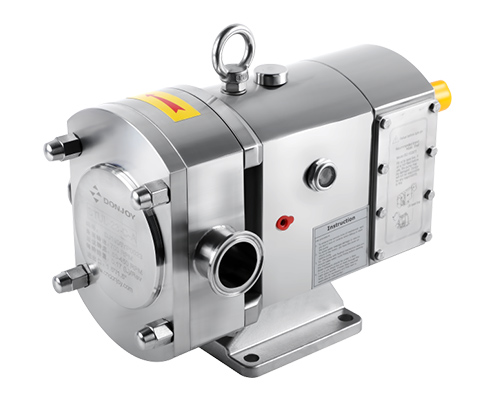

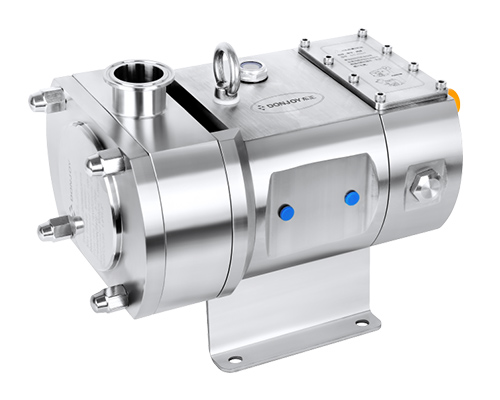

Stainless Steel Lobe Pumps
Stainless steel rotary lobe pumps for controlled transfer of processing liquids, including viscous products where a suitably selected pump is required.
Technical specifications
| Pump type | Rotary positive-displacement lobe pump |
|---|---|
| Product-contact material | 316L stainless steel |
| Maximum flow | Up to 90 m³/h |
| Maximum pressure | Up to 20 bar |
| Maximum temperature | Up to 150 °C |
| Maximum speed | Up to 750 rpm |
| Internal surface finish | Ra 0.8 µm |
| Mechanical seals | Single seal standard; double seal optional |
| Cleaning | CIP and SIP capability, subject to selected configuration |
Figures describe available range limits, not one pump operating at all maxima simultaneously. Confirm the selected size, duty point, motor, seals and materials with Tony before ordering.
Features and selection
- Rotary positive-displacement pump range.
- Different pump sizes, rotor arrangements and drive configurations available, subject to selection.
- Stainless steel construction; wetted-part grade and elastomers confirmed for the product.
- Pump selection considers viscosity, temperature, flow rate, discharge pressure and any solids.
Flow and pressure depend on the selected pump, speed and product. Contact Tony to confirm the correct configuration.
Let us select the right pump
Send Tony the product being pumped, required flow rate, discharge pressure or head, temperature, viscosity, connection sizes and available power supply. Please mention any solids and cleaning requirements.
