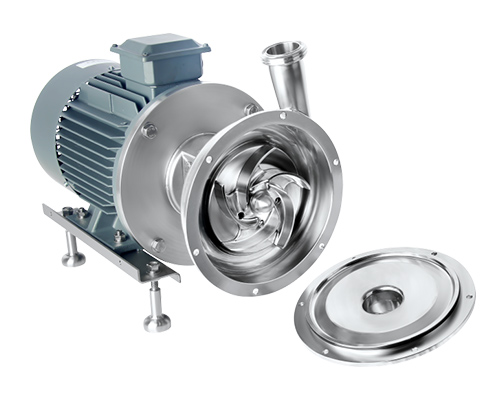

Stainless Steel Centrifugal Pumps
Stainless steel centrifugal pumps for transferring suitable processing liquids, selected for the required flow rate and head.
Technical specifications
| Pump type | Centrifugal process pump |
|---|---|
| Stainless steel options | 304 or 316L, depending on configuration |
| Flow range | 1–120 m³/h across the selected range |
| Maximum head | Up to 70 m |
| Temperature range | −20 to 140 °C, depending on selection |
| Motor power range | 0.3–30 kW |
| Surface finish options | Ra ≤0.8, ≤0.6 or ≤0.4 µm |
| Mechanical seals | Single or double mechanical seal |
| Connections | Threaded, clamp, flanged or aseptic flanged |
Figures describe available range limits, not one pump operating at all maxima simultaneously. Confirm the selected size, duty point, motor, seals and materials with Tony before ordering.
Features and selection
- A range of pump sizes and configurations for process-liquid transfer.
- Stainless steel construction with material and seal options selected for the application.

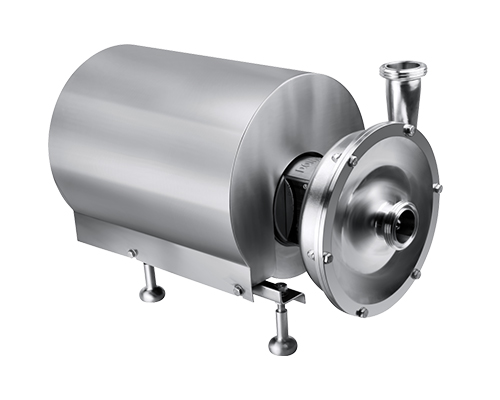

- Alternative inlet/outlet connections and discharge configurations, depending on the selected pump.
- Suitable applications and operating conditions must be checked against the chosen configuration.
Capacity, pressure, temperature and motor power vary by pump selection. Send your duty requirements to Tony for sizing.
Let us select the right pump
Send Tony the product being pumped, required flow rate, discharge pressure or head, temperature, viscosity, connection sizes and available power supply. Please mention any solids and cleaning requirements.
